Stabilizer correction parts

This part compensates for the effect on the stabilizer caused by lifting.
(*The photo shows a prototype stabilizer down block. The production version is silver in color.)

Scroll

Role of stabilizers

Stabilizers are important components that have a significant impact on cornering dynamics and handling stability.

Also called an anti-roll bar, it is a type of torsion spring.

When the vehicle body tries to roll during cornering, a twisting force is generated by the stabilizers, which presses the left and right undercarriage against the road surface and reduces roll.

Stabilizers are generally attached to the vehicle body and undercarriage via stabilizer links.

The stabilizer link converts the vertical motion of the undercarriage (suspension) into a circular arc motion and transmits it to the stabilizer, which becomes the force of the circular arc motion, generating a twisting force on the stabilizer.

Decreased stabilizer effectiveness due to lifting

Lifting up the vehicle moves the body and suspension away from the vehicle and changes the mounting position relationship of the stabilizers. At the same time, the mounting angles of the stabilizer and links change.

If the changed mounting angle is not compensated for, the force applied to the stabilizer will be reduced or the position at which the stabilizer begins to work will become earlier, and the stabilizer will not be able to perform at its 100% capacity.

It also leads to deterioration of ride quality.

Proper functioning of stabilizers by adding corrections

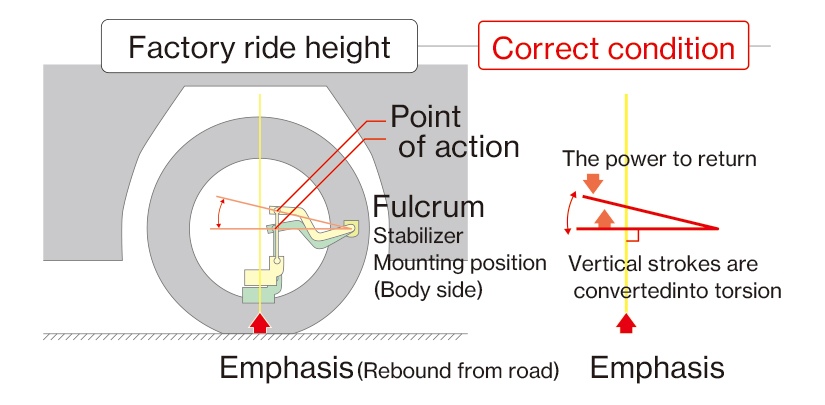

If the mounting position relationship of the stabilizer is expressed in terms of fulcrum, force point, and action point, in the stock condition, the force acts at almost 90 degrees to the action point when stroking, so the force from the road surface can be transmitted to the stabilizer without loss.

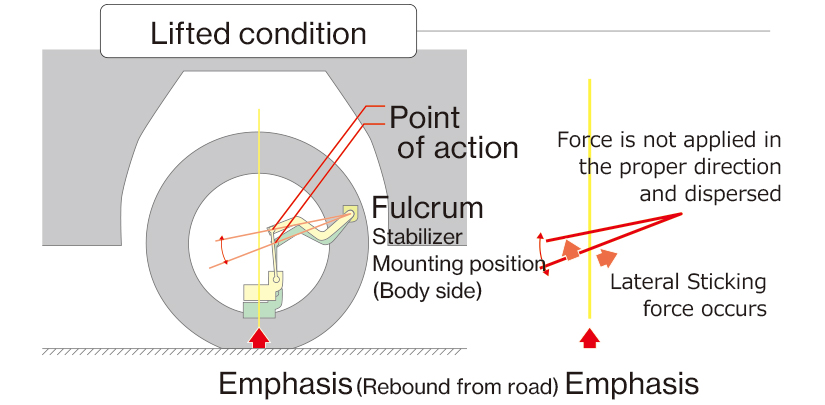

When lifting is performed without correction, the force acts at an angle to the point of action, and the force is dispersed, resulting in a smaller force transmitted to the stabilizer than originally intended. In addition, since the force is exerted against the lateral direction, it leads to deterioration of ride quality.

In addition, depending on the vehicle, the stabilizer is always under tension even at 1G. When tension is applied, even when driving straight on a flat road surface, the stabilizer will function on its own, resulting in loss of the suspension's original movement.

This issue, where the lifting has moved the sway bar mounting position away from the sway bar, can be solved by adding compensation to the sway bar.

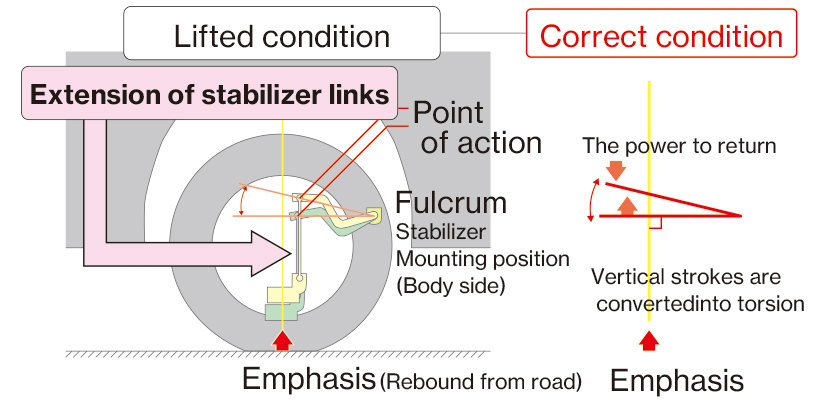

One method is to extend the stabilizer links with stabilizer stays. The stabilizer stay, which connects the stabilizer to the suspension, is properly compensated by extending it so that it is equal to the amount of lift away.

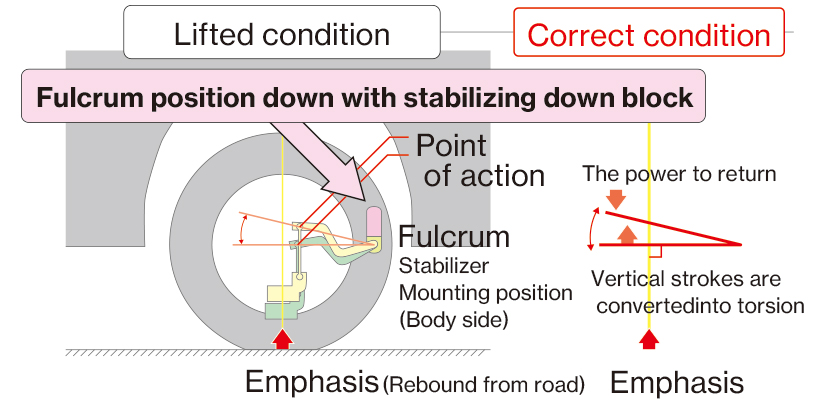

Another method is to install a stabilizer downblock. The mounting position (fulcrum) of the stabilizer can be properly compensated by lowering it by an amount equivalent to the amount of lift away.


Stabilizer stay (extension of stabilizer link)


Stabilizer stay

This part ensures optimum stability of a lifted vehicle by extending the stabilizer stay when the vehicle is lifted by COUNTRY SUSPENSION.

Stabilizer stayLINE-UP

TOYOTA

LAND CRUISER

  • TL60-026
    Item Number
    TL60-026
    Compatibility
    J6# / Sept.1987-Sept.1989
    for Front
    Price(Tax included)
    3,000yen (3,300yen)
    notes
    Required when Country suspension is installed, set of 2
  • TL60-030
    Item Number
    TL60-030
    Compatibility
    J6# / Sept.1987-Sept.1989
    for Rear (Only for vehicles with stabilizer)
    Price(Tax included)
    9,000yen (9,900yen)
    notes
    Required when Country suspension is installed, set of 2
  • TL70-012
    Item Number
    TL70-012A
    Compatibility
    P/HZJ7# Jan.1990-Jul.1999 for Front
    Price(Tax included)
    4,000yen (4,400yen)
    notes
    Required when Country suspension is installed, set of 2

Stabilizer downblock (moving down the sway bar mounting position)


Stabilizer downblock

This part ensures optimum stability of a lifted vehicle by lowering the mounting position of the sway bar bushings with a block when the vehicle is lifted by country suspension.

Mounting bolts are also included.

Stabilizer down blockLINE-UP

TOYOTA

LAND CRUISER PRADO 150 / FJ CRUISER

  • CS-035
    Item Number
    CS-035
    Compatibility
    LAND CRUISER PRADO(TRJ150W / GRJ150W)
    FJ CRUISER(GSJ15W / Nov.2010-)
    Price(Tax included)
    4,800yen (5,280yen)
    notes
    10mm down / Mounting bolts included

LAND CRUISER 70

  • CS-035
    Item Number
    CS-040
    Compatibility
    LAND CRUISER 70 (GRJ76K / GRJ79K)
    Price(Tax included)
    8,000yen (8,800yen)
    notes
    30mm down / Mounting bolts included

SUZUKI

JIMNY JB64 / JIMNY SIERRA JB74

  • CS-054
    Item Number

    NEW!
    CS-054

    Compatibility
    JB64 / JB74
    List price(Tax included)
    10,500yen (11,550yen)
    notes
    3-step adjustment / mounting bolts included
